NCS25S10
- 輸入類型 : LVPECL, LVDS, HCSL, SSTL, LVCMOS, LVTTL
- 輸入端口數 : 3
- 輸出端口數 : 10
- 輸出類型 : LVCMOS
- 器件類型 : Single-Ended Buffer
- Core Supply Voltage(V) : 2.5V,3.3V
- Output Supply Voltage(V) : 1.5, 1.8, 2.5, 3.3V
- Output frequency(Min)(MHz) : DC
- Output frequency(Max)(MHz) : 200
- Additive Jitter(fs) : 30
- Temperature Range : -40 to 85
- Package : 32-pin QFN(5mm x 5mm)
輸入端口數 : 3
輸出端口數 : 10
輸出類型 : LVCMOS
器件類型 : Single-Ended Buffer
産品描述
High-performance crystal buffer with ultra-low noise floor of -170 dBc/Hz
Low-power clock fanout buffer with additive jitter of 30 fs RMS (typical, 12k to 20M)
Level translation from 3.3V or 2.5V core supply to output supply of 3.3V, 2.5V, 1.8V or 1.5V

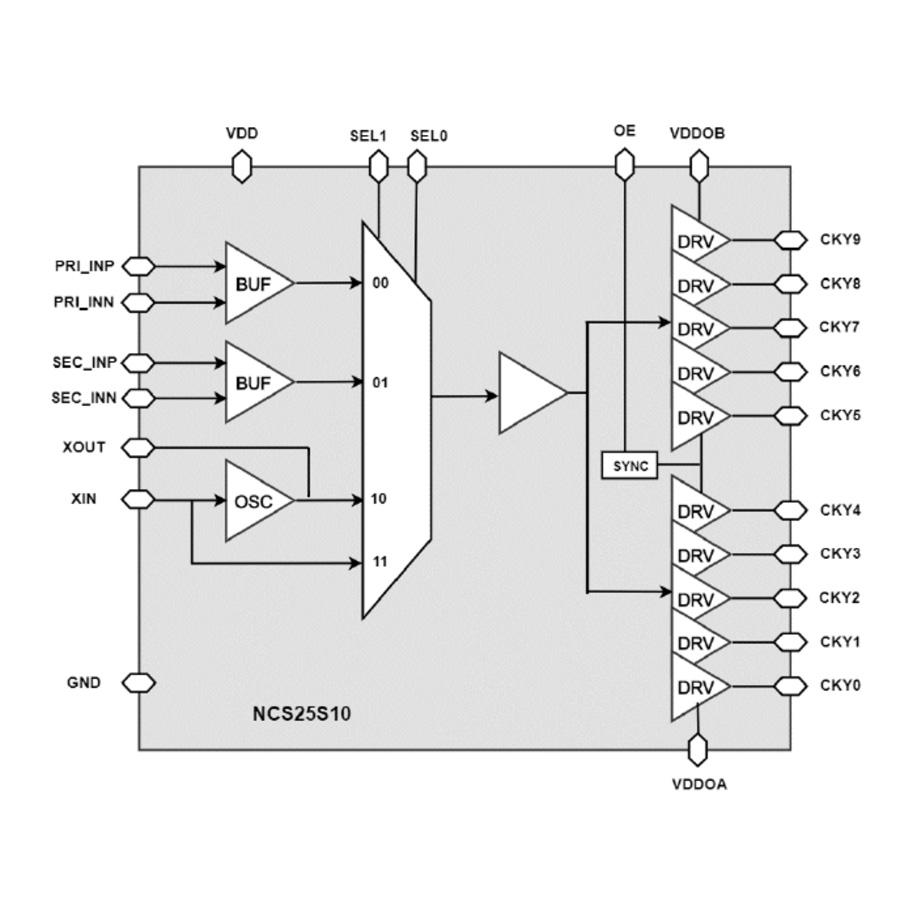

Device consists of primary, secondary and crystal inputs which are selectable through input pins.
Clock inputs can accept LVPECL, LVDS, HCSL, SSTL, LVCMOS or LVTTL signals.
Both differential and single-ended inputs are supported with frequencies from DC to 200MHz.
Support either DC or AC-coupled input interface.
産品參數
Crystal frequencies from 8MHz to 50MHz.
Crystal overdrive mode or bypass mode
10 Single-ended LVCMOS output with two independent output supply banks.
Operate up to 200MHz
Low propagation delay of 1ns (typical)
Output skew of 30ps (typical)
Synchronous and glitch-free output enable through input pin
Offered in 32-pin QFN package (5-mm x 5-mm)
Core Supply Voltage(V):2.5V,3.3V
Output Supply Voltage(V):1.5, 1.8, 2.5, 3.3V
Output frequency(Min)(MHz):DC
Output frequency(Max)(MHz):200
Additive Jitter(fs):30
Temperature Range:-40 to 85
Package:32-pin QFN(5mm x 5mm)
