産品描述

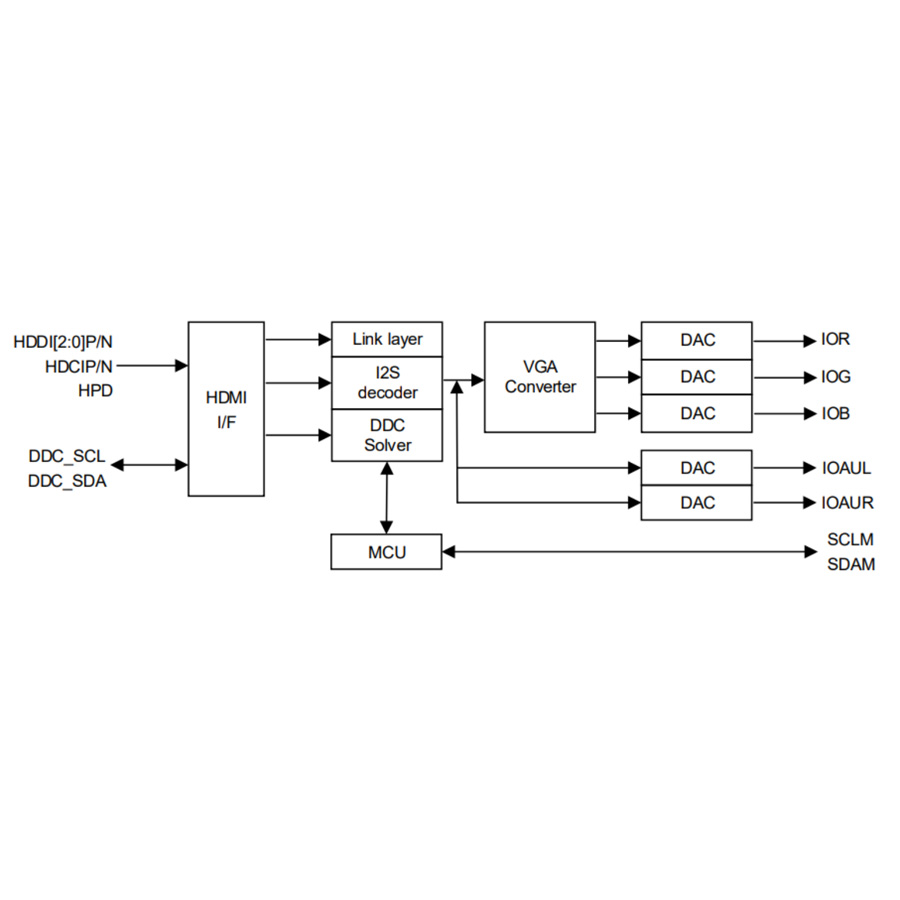

NCS8821 is a low-cost, low-power, the HDMI1.4 high resolution video to VGA converter. It consists of HDMI receiver, three separate 10-bit video Digital-to-Analog Converters (DACs) and audio encoder. This is a single-chip solution for HDMI to VGA adapter, Docking station and etc. The HDMI receiver is compliant with HDMI 1.4a specification. The VGA output can support up to WUXGA (1920*1200 CVTRB@ 60Hz). The 4mm*4mmQFN32 package can save the PCB spaces.
産品參數
• VGA Output
• Max resolution Up to WUXGA (1920*1200 CVT-RB@60Hz)
• Support VGA connection detection
• HDMI Input
• HDMI 1.4a compliant
• Support RGB444/YCbCr444/YCbCr422
• Pixel clock up to 166MHz
• Support 2-channel 12-bit audio DAC
• Support Hot-Plug Detection
• Adaptive equalization
• Clock
• Embedded Crystal, Crystal-less in components
• Embedded MCU
• Support I2C Master up to 400 kHz.
• 5V tolerance DDC I/Os
• Power
• 5V/3.6V supply
• Power consumption ~ 160mA
• Deep-sleep mode power <1mW
• Package
• QFN-32 (4mm * 4mm) package
• RoHS Compliant
