産品描述

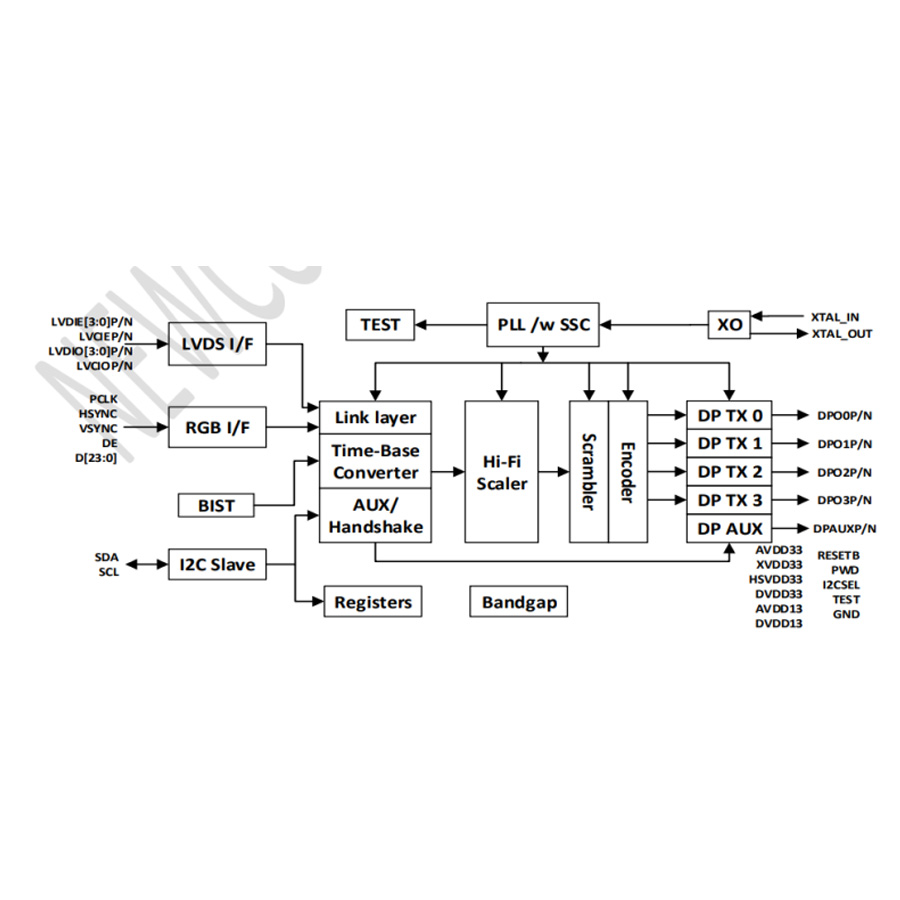

NCS8805 is a low-power RGB/LVDS-to-DisplayPort/eDP converter w/ Scaler, which is designed for mobile devices including smartphones, tablets, laptops, etc. to support highdefinition DP/eDP displays. NCS8805 supports 4-lane DP/eDP output which is typically required to support QXGA (2048*1536) and above at 60Hz frame rate. NCS8805 supports up to UHD(3840*2160). All the functions including both RGB and LVDS interfaces pack into a small 7mm*7mm QFN56 package which saves the precious space in mobile devices.
産品參數
Embedded-DisplayPort (eDP) Output
1/2/4lane eDP @ 1.62/2.7Gbps per lane
UP to UHD (3840*2160)1 supported Up to 6dB pre-emphasis
RGB Input
18/24bit RGB Interface
Pixel clock up to 270MHz
SDR/DDR supported
Pin order reversal supported
LVDS Input
Single/Dual-channel 6/8bit LVDS interface
400Mbps to 1Gbps per data pair
Built-in termination
Channel and polarity swap supported
Reference Clock
Any freq. between 19MHz and 100MHz
Crystal or single-ended clock input
Built-in 5000ppm SSC generator
FRC
6bit FRC supported
Misc
I2C/SPI for chip configuration
Built-in eDP handshake protocol
I2C-AUX channel for TCON/DPCD/EDID
control
Built-in video test pattern
Power
1.35V core supply w/ scaler
2.5V or 3.3V IO supply
RGB IO can go down to 1.8V
Deep-sleep mode power <5mW
~ 255mW @ 1920*1080*60Hz w/o scaler
~ 617mW @ 3840*2160*60Hz w/ scaler
Package
QFN-56 (7mm x 7mm) package
RoHS Compliant
