産品描述

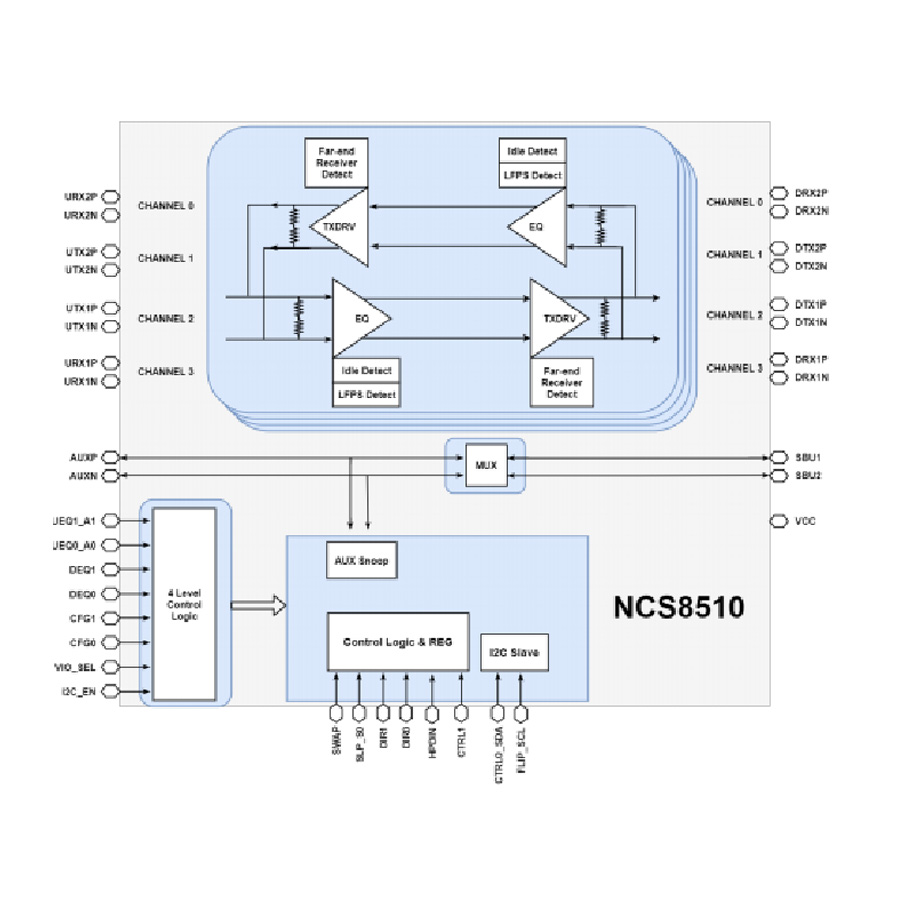

The NCS8510 is a USB Type-C bi-directional linear redriver supporting data rates up to 10 Gbps. This multi_protocal linear redriver is capable of supporting USB type-C with USB 3.1 and DisplayPort 1.4 as alternate mode. It can also be configured to support custom USB Type-C alternate modes. The NCS8510 provides several levels of receive equalization to compensate for cable and board trace loss due to inter-symbol interference (ISI) when USB 3.1 Gen 1/Gen 2 or DisplayPort (or other Alt modes) signals travel across a PCB or cable. This device operates at a single 3.3V power supply and implements advanced power management by monitoring USB power states and snooping DP link training. All four lanes of the device are reversible and each lane has a receiver equalizer with selectable gain settings.
産品參數
• Reversible 4 lanes linear redriver supporting data rate up to 10Gbps
• Supports USB type-C with USB 3.1 Gen 1/Gen 2 and DP 1.4
• Linear equalization up to 10 dB at 4.05 GHz
• Supports both Pin strap and I2C programming for lane direction and equalization
• Configuration through GPIO or I2C with 3.3V/1.8V interface voltage levels
• Advanced power management by monitoring USB power states and snooping DP link training
• Hot-Plug capable
• Single 3.3V Supply
• Temperature range: -40ºC to 85ºC
• Package: WBQFN 40pin (6mm x 4mm)
