NCS23345
- 輸入類型 : XTAL, Single-Ended,Differential-Ended inputs
- 輸入端口數 : 4
- 輸出端口數 : 10
- 輸出類型 : LVDS, LVPECL, LVCMOS,HCSL
- 器件類型 : Jitter Attenuator+Clock Synthesizer
- Core Supply Voltage(V) :
- Output Supply Voltage(V) :
- Output frequency（Min）（MHz） :
- Output frequency（Max）（MHz） :
- Additive Jitter(fs) :
- Temperature Range :
- Package :
輸入端口數: 4
輸出端口數: 10
輸出類型: LVDS, LVPECL, LVCMOS,HCSL
器件類型: Jitter Attenuator+Clock Synthesizer
所屬分類
PLL
NCS23345
産品描述
産品描述

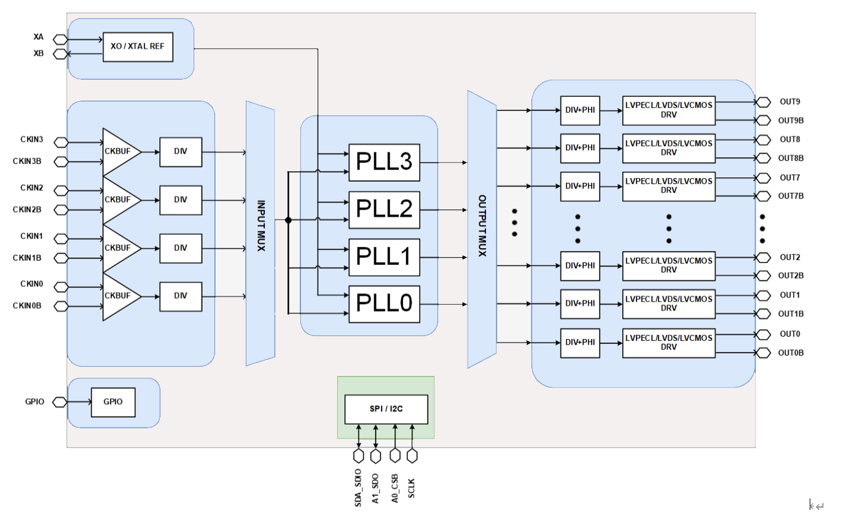

NCS23345 jitter attenuators / clock multiplier combines APLL and DPLL to deliver ultra-low jitter (140fs) for high performance applications like 56G SerDes. All PLL components are fully-integrated on-chip, eliminating the risk of noise coupling associated with discrete solutions. It features 4 differential or single-ended clock inputs and 10 differential or 20 single-ended clock outputs. Furthermore, independent APLL / DPLL outputs can be locked to any of the inputs and sent to any of the chip outputs. Each output can be configured as LVDS, LVPECL or two single-ended LVCMOS. In addition, each output clock phase can be adjusted dynamically.
NCS23345 supports free-run, synchronous and holdover modes as well as enhanced automatic or manual hitless switching between input clocks. It is programmable by I2C or SPI serial interface. NCS23345 is capable of generating any combination of output frequency from any input frequency as specified in the datasheet.
産品參數
• Generate any combination of output frequencies from any input frequency
• External XTAL or XO reference frequency from 10MHz to 285MHz
• Ultra-low phase jitter of 140 fs RMS 12kHz-20MHz
• Supports free-run, synchronous (Lock input) and holdover modes as well as enhanced hitless switching
• Supports independent APLL/DPLL loops and 10 outputs
• Supports 4 differential or single-ended clock inputs
• Meets G.8262, E.8262.1 EEC Standards
• Status monitoring (LOS, OOF, LOL)
• Zero delay mode
• DCO mode
• Serial Interface: I2C or SPI
• Input frequency range
Differential: 8 kHz to 1 GHz
LVCMOS: 8 kHz to 250 MHz
• Output frequency range
Differential: 8 kHz to 1 GHz
LVCMOS: 8 kHz to 250 MHz
• Highly configurable outputs format compatible with LVDS, LVPECL, LVCMOS, CML and HCSL with programmable signal amplitude and output common voltage
• Independent output clock supply pins: 3.3V, 2.5V, or 1.8V.
• Package: QFN 64pin (9mm x 9mm)
